Pvc Pe Coated Electrical Wire Extruding Making Machine Cable Extruding Production Line

Pvc Pe Coated Electrical Wire Extruding Making Machine Cable Extruding Production Line

Brand Name:	Choose Technology
Model Number:	D70
MOQ:	1SET
Price:	USD30000-50000/1SET
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	5 SETS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Application:

Extruding Cables

Cable Making Equipment:

Yes

Cable Size:

1.5,2.5

Conductor Shape:

Circular, Sector, Stranded, Solid

Control Method:

Touch Screen + PLC

Cooling System:

Water Cooling

Emperature Control:

Japan RKC

Extrusion Capacity:

Max. 200kg/h

Function:

Insulation Or Sheathing

Screw Barrel Material:

38CrMoAlA

Screw Dia Meter:

70mm

Name:

Electric Wire Cable Extrusion Production Line

Packaging Details:

Suitable for sea transportation packaging

Supply Ability:

5 SETS PER MONTH

Highlight:

electric wire machine

electrical wire making machine

wire extruder making machine

Product Description

pvc/pe coated electrical wire extruding making machine cable extruding production line

1. General description:

This machine is used to electric cable insulation and sheath layer coating.

2. Technical parameter:

Diameter of wire core	Ф1.0mm-Ф.08mm
Diameter of finished	Ф1.8mm-10mm, based on hardness of wire
Extrusion capacity	200KG/H (Extrusion head open)
Speed	300m/min
Center height of machine	1000mm

3.Main electrical components

Motor	SIEMENS BEIDE
Inverter	VEICHI
Gearbox	XINHONGYI
Screw	ZHOUSHAN
Temperature control	Japan RKC
Contactor	SHILIN
Relay	OMRON/DELIXI
Circuit breaker	DELIXI
Bearing	NSK/NACHI/ASCHI/KOYO/HARBIN
PLC	SIEMENS
Touch screen	SIEMENS

4. Equipment list

Ф500-630 Double position pay off machine	1 set
Ф100 straightening platform	1 set
Copper wire pre-heater	1 set
Ф70 main extrusion machine	1 set
2m pre water tank	1 set
8m single layer U shape water tank	1 set
Ф500 double wheels water tank tracking machine	1 set
12m horizontal wire store frame	1 set
Ф630 double position wire take up machine	1 set
Main control cabinet (system and temperature system control)	1 set
75kg material suction machine	1 set
Drying machine	1 set
Meter counter	1 set
Outside diameter measuring and controlling instrument	1 set

5. FAQ:

Dear customers, there are several models for the cable extrusion production line. In order to recommend the suitabe model, we'd like to learn some information:

1. Bare wire diameter

2. Soft wire or hard wire

3. Insulation/Sheath layer thickness

4. Whether with color strips?

Best regards

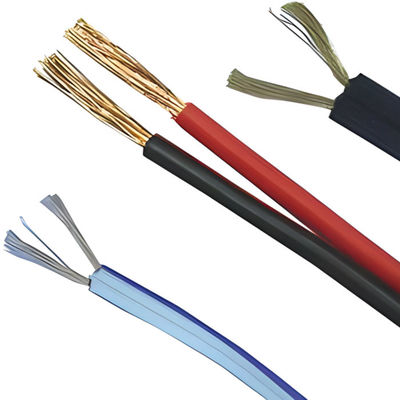

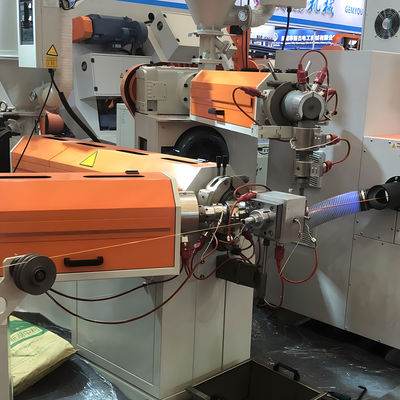

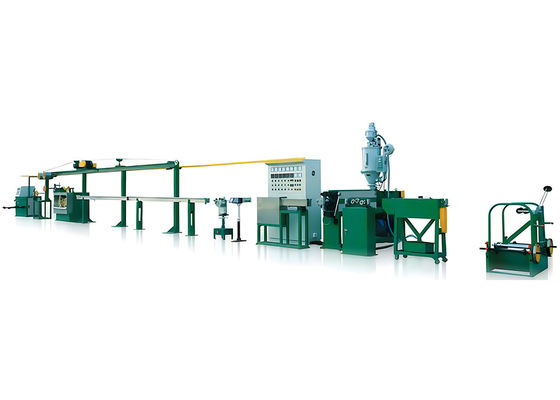

5. Reference photos

Pvc Pe Coated Electrical Wire Extruding Making Machine Cable Extruding Production Line 0
